BIOS type: AMI
Width: 30.5 cm
Bus clock: 5400 MHz (OC), 5600 MHz (OC), 5800 MHz (OC), 6000 MHz (OC), 4800 MHz, 6200 MHz (OC), 6400 MHz (OC), 5200 MHz, 5000 MHz
Depth: 24.4 cm
Features: Dual channel memory architecture, AMD EXPO technology
Expansion card slots: 1 x CPU | 4 x DIMM 288 pins | 1 x PCIe 4.0 x16 | 1 x PCIe 4.0 x16 (x4 mode) | 2 x PCIe 4.0 x1 | 2 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) | 1 x M.2 socket (Key E)
Interfaces: 1 x HDMI | 1 x DisplayPort | 1 x audio output - mini jack | 1 x microphone - mini jack | 1 x audio output (center/subwoofer) - mini jack | 1 x audio output (rear) - mini jack | 1 x audio input - mini jack | 1 x LAN (2.5Gigabit Ethernet) | 1 x SPDIF output |
Hardware Features: Automatic device recognition, ASUS Q-Design, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, audio jack detection technology, ASUS DIGI+ VRM, ASUS Stainless Steel Back I/O, 6 Layer PCB, surge protection, ASUS 5X Protection III, M.2
Included accessories: IO protection, 1 pc. M.2 rubber kit, m.2 screw kit
Internal interfaces: 4 x USB 2.0 - header | 2 x USB 3.2 Gen 1 - header | 1 x USB-C 3.2 Gen 1 - header | 1 x serial - header | 1 x audio - header | 1 x Thunderbolt - header | 1 x SPI - header
Compatible processors: Ryzen (support for Ryzen 7000 Series)
Circuit type: AMD B650
Storage interface: SATA-600 connectors: 4 x 7 pin Serial ATA - RAID 0 / RAID 1 / RAID 10 | PCIe 5.0 connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 | PCIe 4.0 connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10
Maximum size: 128 GB
Maximum number of processors: 1
Supplied cables: 2 x Serial ATA cable
Included software: ASUS CPU-Z, ASUS AI Suite III, PC Cleaner, WinRAR, Norton AntiVirus (Trial), ASUS AURA Creator, Armoury Crate, ASUS Fan Xpert 2+.
Network interface: 2.5 Gigabit Ethernet
Processor socket: Socket AM5
Registered or buffered: Unbuffered
Standards Compliant: VCCI Class B ITE, FCC Part 15 Class B, DisplayPort 1.4, EU RoHS, EU REACH
Power Connectors: 24-pin main power connector, 8-pin ATX12V connector
Supports Frame Integrity Check: Non ECC, ECC, on-die ECC
Technology: DDR5
Type: HD Audio (8 channels)

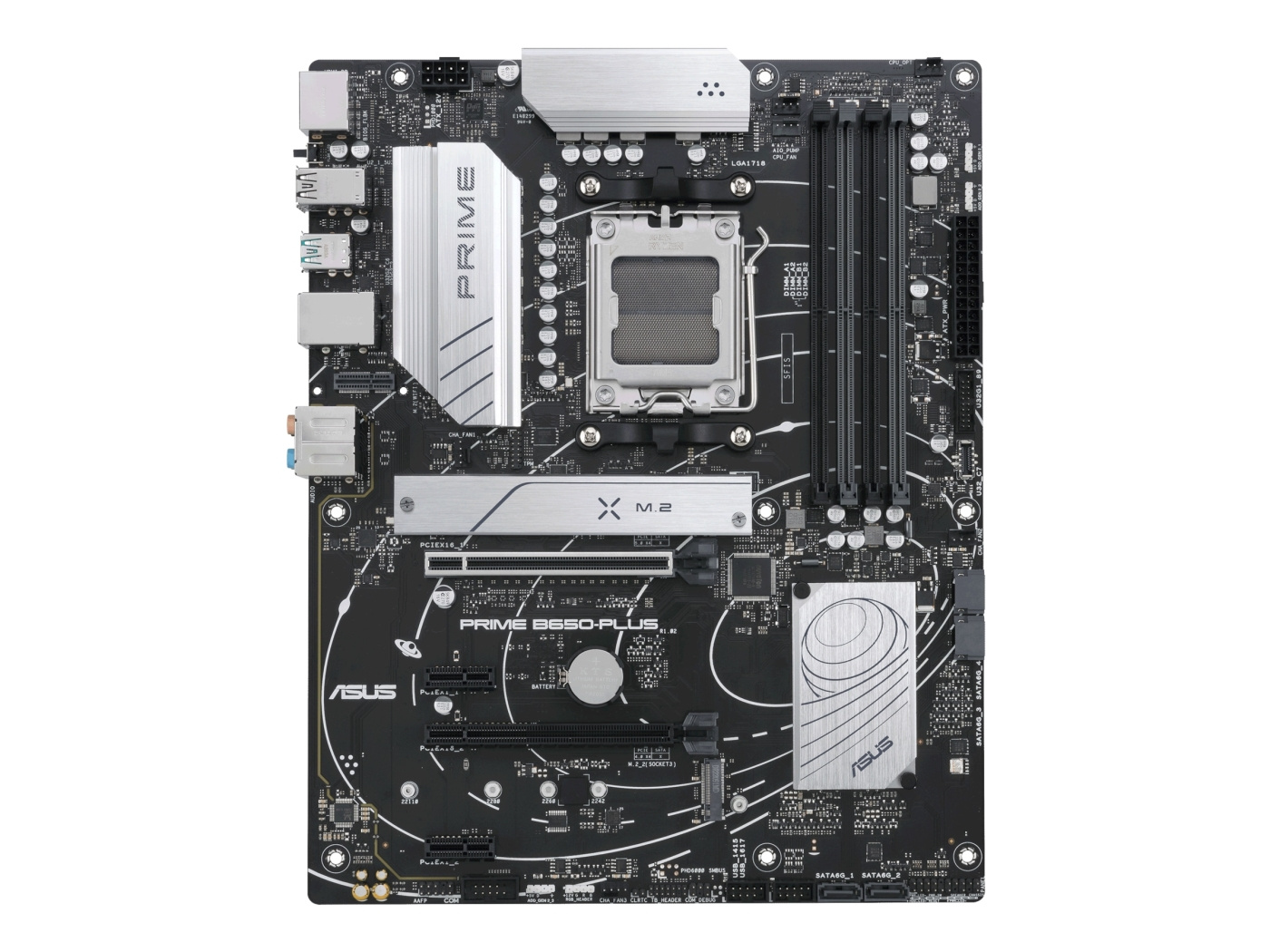

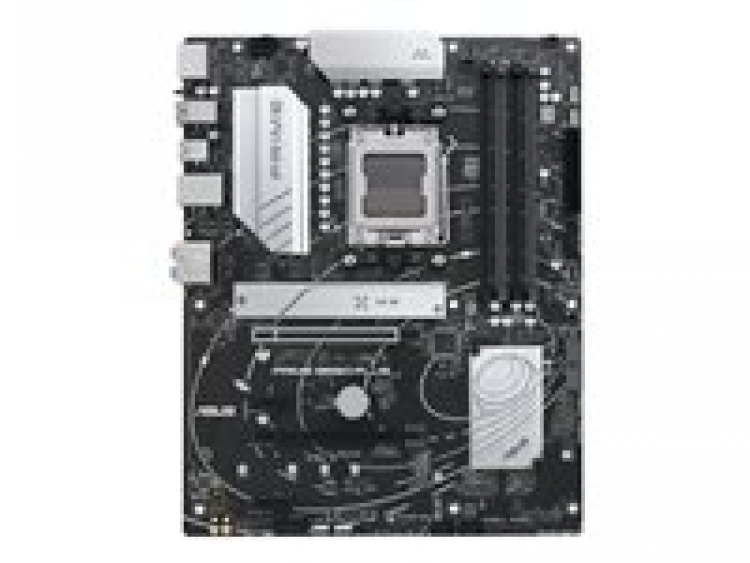

Product Type: Motherboard - ATX
Sleep/Wake Mode: Wake on LAN (WOL), wake on PME
4711081923381EAN:
