BIOS type: AMI
Width: 24.4 cm
Bus Clock: 2400 MHz, 2133 MHz, 2666 MHz, 2800 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3400 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 3533 MHz (O.C.)
Depth: 24 cm
Features: Dual channel memory architecture
Expansion card slots: 1 x CPU | 4 x DIMM 288 pins | 1 x PCIe 3.0 x16 (x16 mode (with 1st, 2nd, and 3rd generation Ryzen processors); x8 mode (with Ryzen with Radeon Vega Graphics and 2nd generation Ryzen with Radeon Vega Graphics); x4 mode (with Athlon with Radeon Vega Graphics); x4 mode (with Athlon with Radeon Vega Graphics).

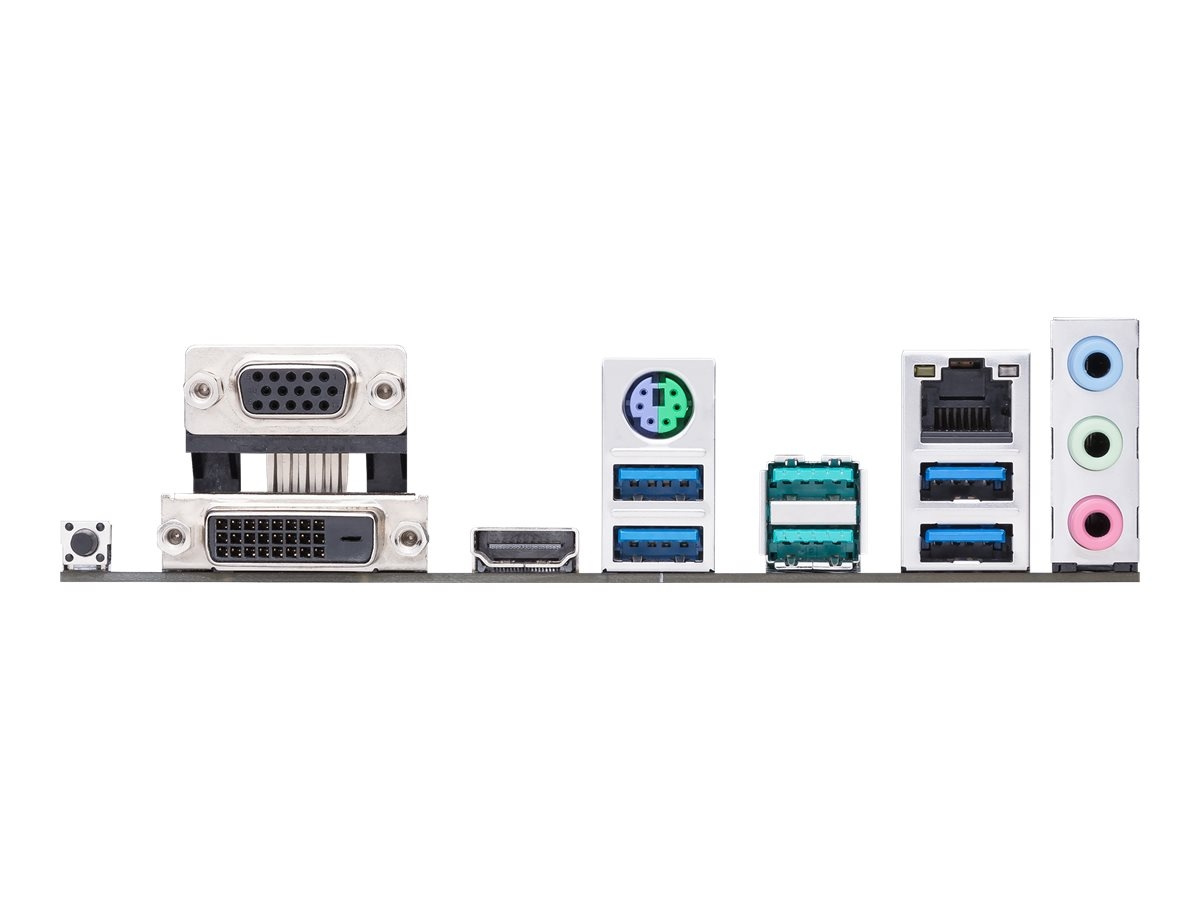

Interfaces: 1 x LAN (Gigabit Ethernet) | 4 x USB 3.2 Gen 1 | 1 x PS/2 keyboard/mouse | 1 x audio input - mini jack | 1 x audio output - mini jack | 1 x microphone - mini jack | 1 x VGA | 1 x DVI-D | 1 x HDMI | 2 x USB 3.2 Gen 2
Hardware features: Automatic device recognition, ASUS Q-Design, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, audio jack detection technology, ASUS EPU (Energy Processing Unit), ASUS DIGI+ VRM, ASUS Stainless Steel Back I/O, ASUS Fan Xpert 2+, LANGua

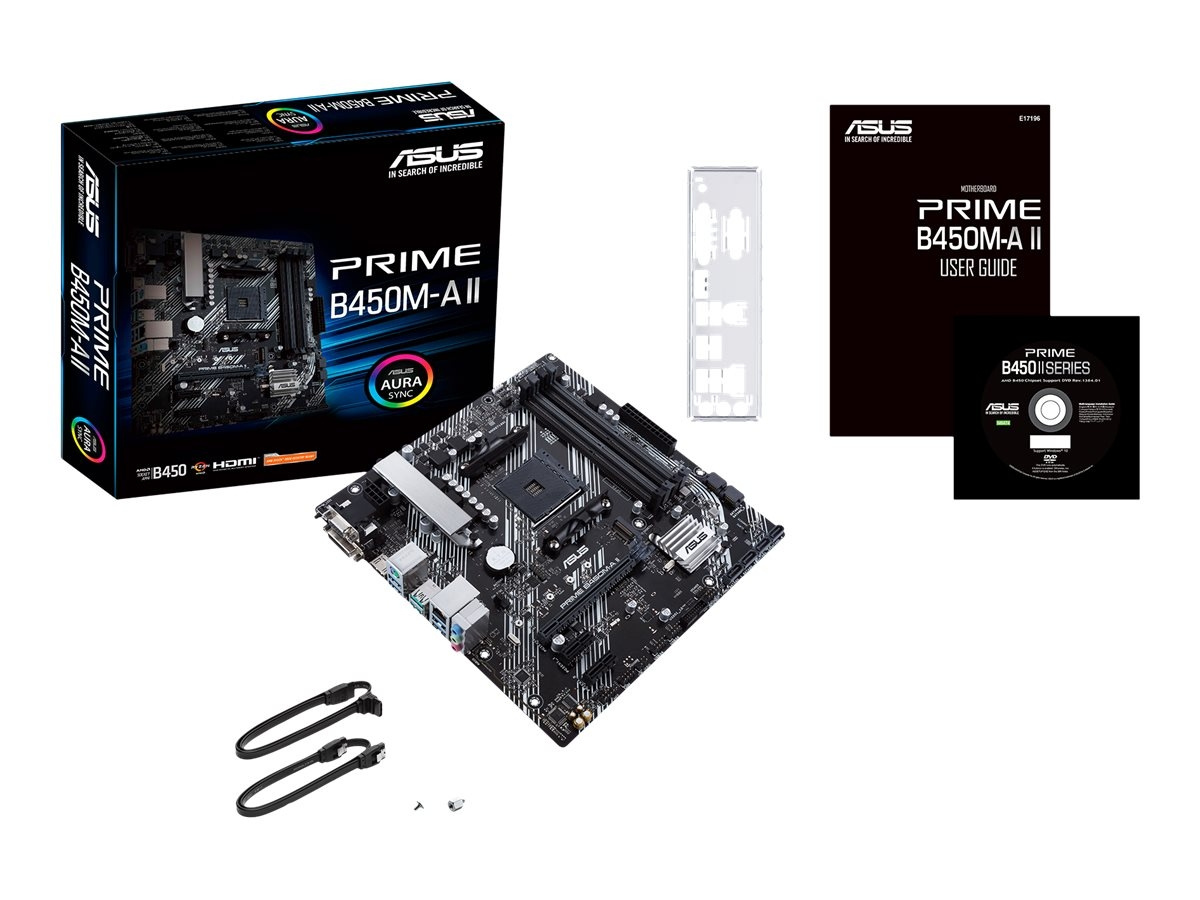

Included accessories: 1 x M.2 screw, rear I/O cover
Internal interfaces: 4 x USB 2.0 - header | 2 x USB 3.2 Gen 1 - header | Serial - header | 1 x SPDIF out - header | 1 x audio - header | 1 x speaker - header
Compatible processors: Athlon, Ryzen (supports 1st, 2nd, and 3rd generation Ryzen/Ryzen with Radeon Vega Graphics and 2nd generation Ryzen with Radeon Graphics/Athlon with Radeon Vega Graphics).
Circuit type: AMD B450
Storage interface: SATA-600 connectors: 6 x 7 pin serial ATA - RAID 0 / RAID 1 / RAID 10 | SATA-600 / PCIe 3.0 connectors: 1 x M.2
Maximum size: 128 GB
Maximum number of processors: 1
Cables included: 2 x Serial ATA cable
Included software: Drivers and utilities, ASUS CPU-Z, ASUS AI Suite III, ASUS EZ Update, PC Cleaner, ASUS EZ Flash 3, DAEMON Tools, WinRAR, Norton AntiVirus (60-day trial).
Network interface: Gigabit Ethernet
Network controller: Realtek RTL8111H
Processor socket: Socket AM4
Registered or buffered: Unbuffered
Service and Support: Limited Warranty - 3 years
Standards adhered to: HD Audio
Power connectors: 24-pin main power connector, 8-pin ATX12V connector
Supports Ram Integrity Check: Non ECC, ECC
Technology: DDR4
Type: HD Audio (8 channels)
Product Type: Motherboard - micro ATX
4718017924986EAN:
