BIOS properties: UEFI BIOS, ASUS EZ Flash 3
BIOS type: AMI
Width: 30.5 cm
Bus clock: 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3466 MHz (OC), 3600 MHz (OC), 3866 MHz (OC), 4000 MHz (OC), 4400 MHz (OC), 3200 MHz
Depth: 24.4 cm
Features: Dual channel memory architecture
Expansion slots: 1 x CPU | 4 x DIMM 288 pins | 1 x PCIe 4.0 x16 | 1 x PCIe 3.0 x16 (x4 mode) | 3 x PCIe 3.0 x1

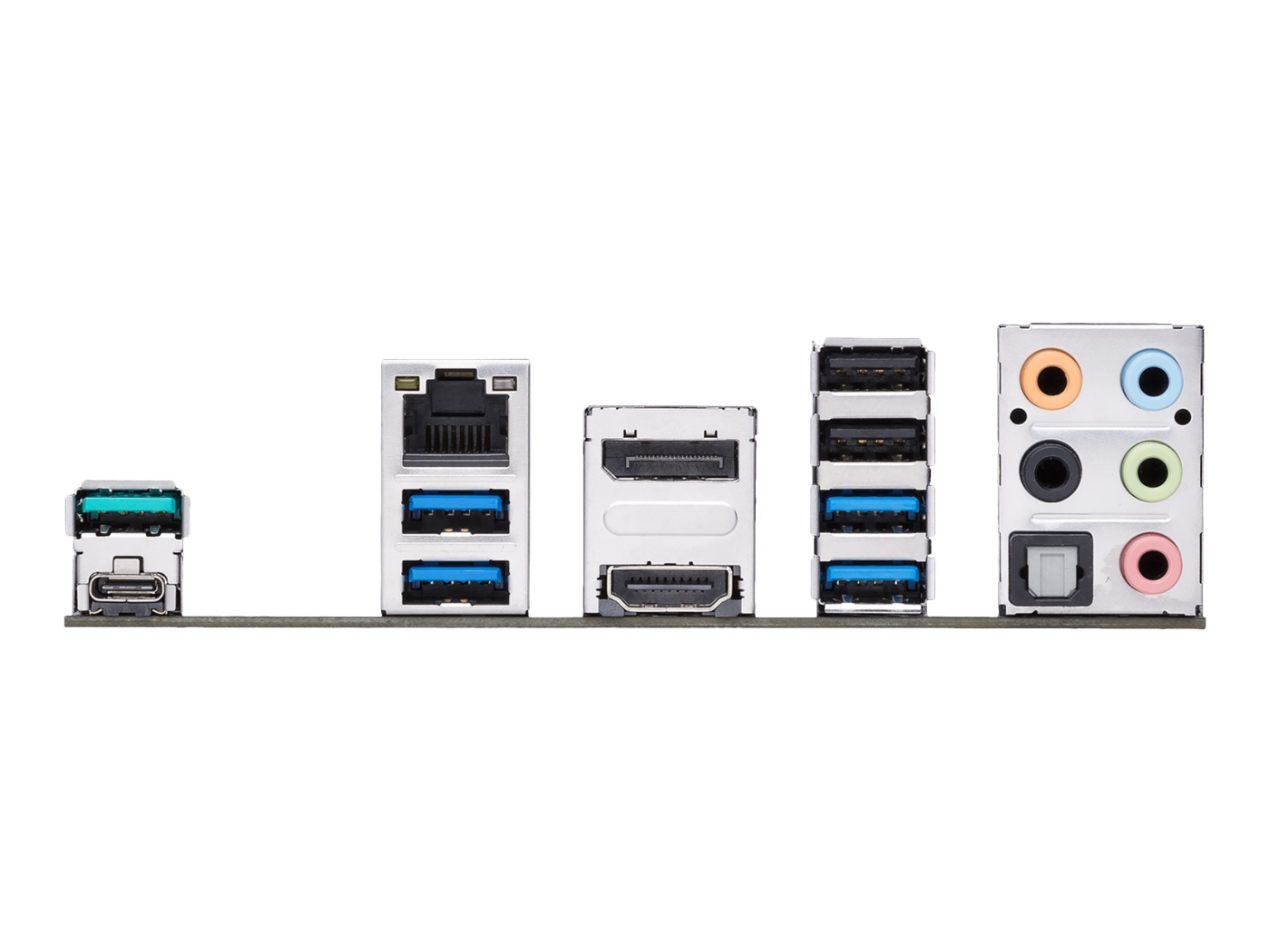

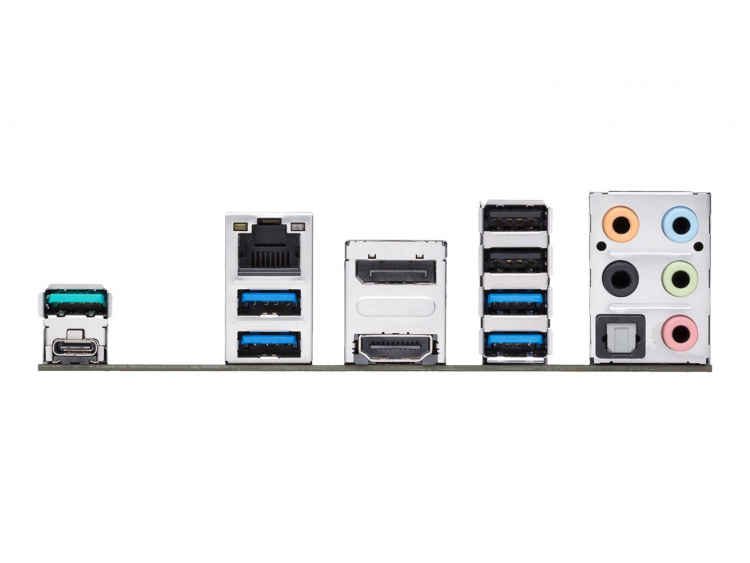

Interfaces: 1 x LAN (Gigabit Ethernet) | 4 x USB 3.2 Gen 1 | 1 x audio input - mini jack | 1 x audio output - mini jack | 1 x microphone - mini jack | 1 x USB-C Gen2 | 1 x USB 3.2 Gen 2 | 1 x TOSLINK | 1 x audio output (center/subwoofer) - mini jack | 1 x audio output (b
Hardware features: Automatic device recognition, ASUS Q-Design, ESD Guards, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detection technology, ASUS EPU (Energy Processing Unit), ASUS DIGI+ VRM, AMD CrossFireX technology support, ASUS En

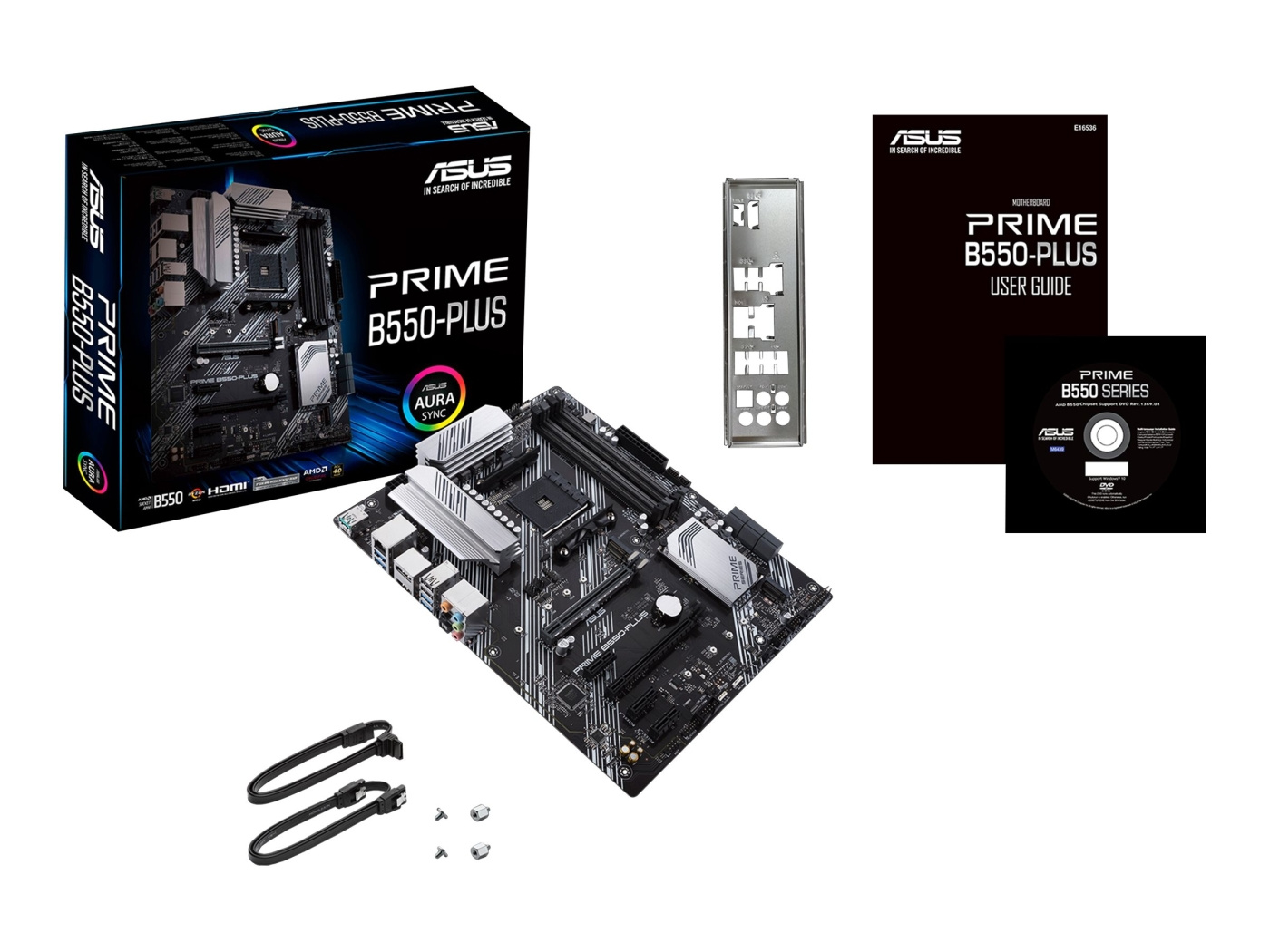

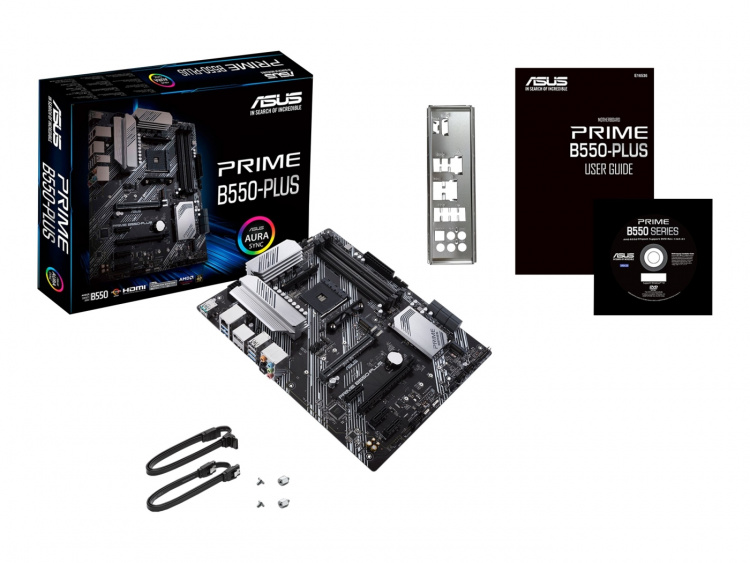

Included accessories: 1 x M.2 screw, rear I/O case
Internal interfaces: 4 x USB 2.0 - header | 2 x USB 3.2 Gen 1 - header | 1 x Thunderbolt - header | 1 x audio - header | 1 x serial - header
Compatible processors: Ryzen (supports 3rd generation Ryzen)
Circuit type: AMD B550
Storage interface: SATA-600 connectors: 6 x 7 pin serial ATA - RAID 0 / RAID 1 / RAID 10 | SATA-600 / PCIe 4.0 connectors: 1 x M.2 | SATA-600 / PCIe 3.0 connectors: 1 x M.2
Maximum size: 128 GB
Maximum number of processors: 1
Included cables: 2 x Serial ATA cable
Included software: Drivers and utilities, ASUS CPU-Z, ASUS AI Suite III, ASUS EZ Update, DAEMON Tools, WinRAR, Norton AntiVirus (60-day trial).
Network interface: Gigabit Ethernet
Network controller: Realtek RTL8111H
Processor socket: Socket AM4
Registered or buffered: Unbuffered
Service and Support: Limited Warranty - 3 years
Standards adhered to: HD Audio
Power connectors: 24-pin main power connector, 8-pin ATX12V connector
Supports Ram Integrity Check: Non ECC, ECC
Technology: DDR4
Type: HD Audio (8 channels)

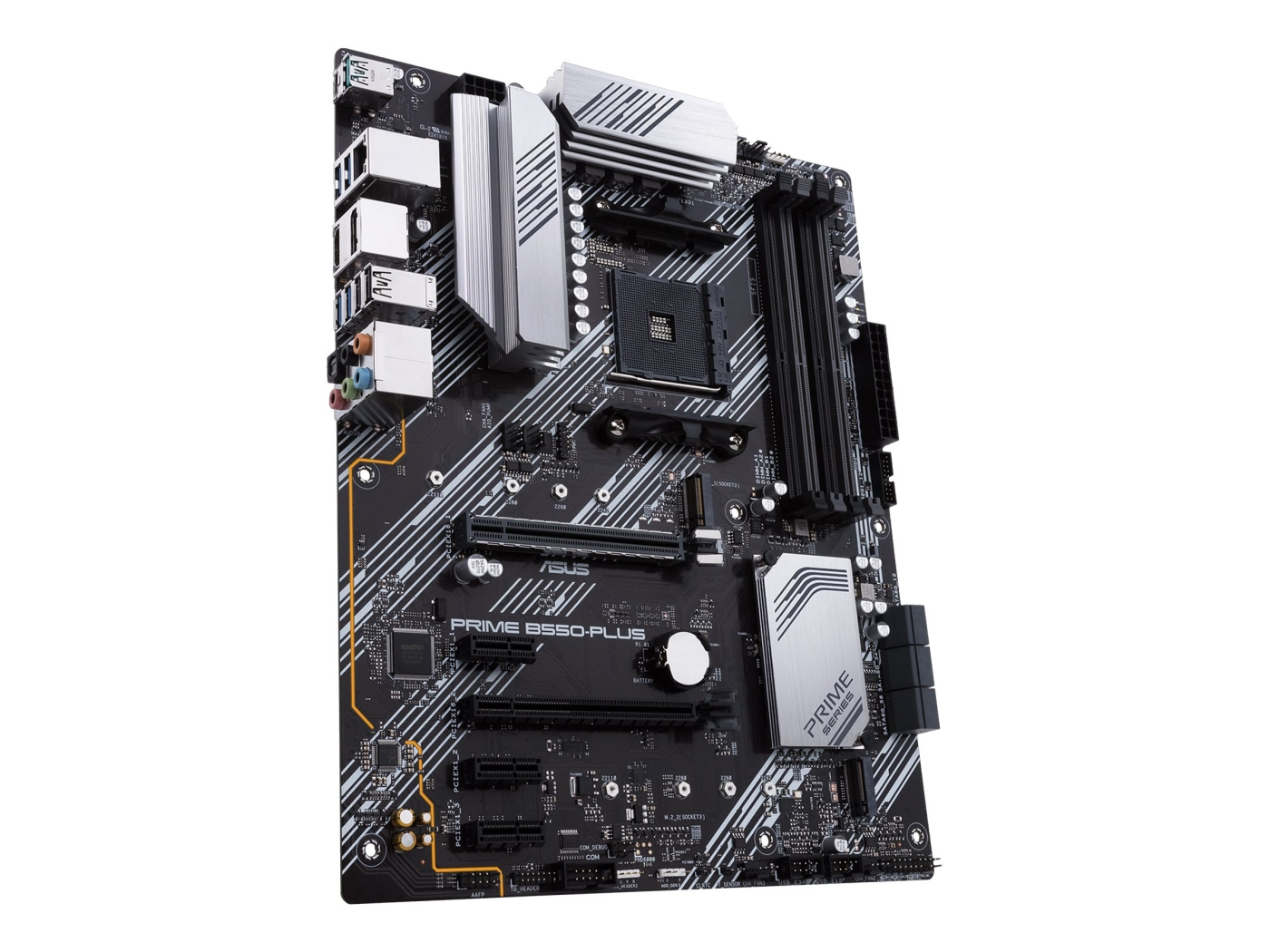

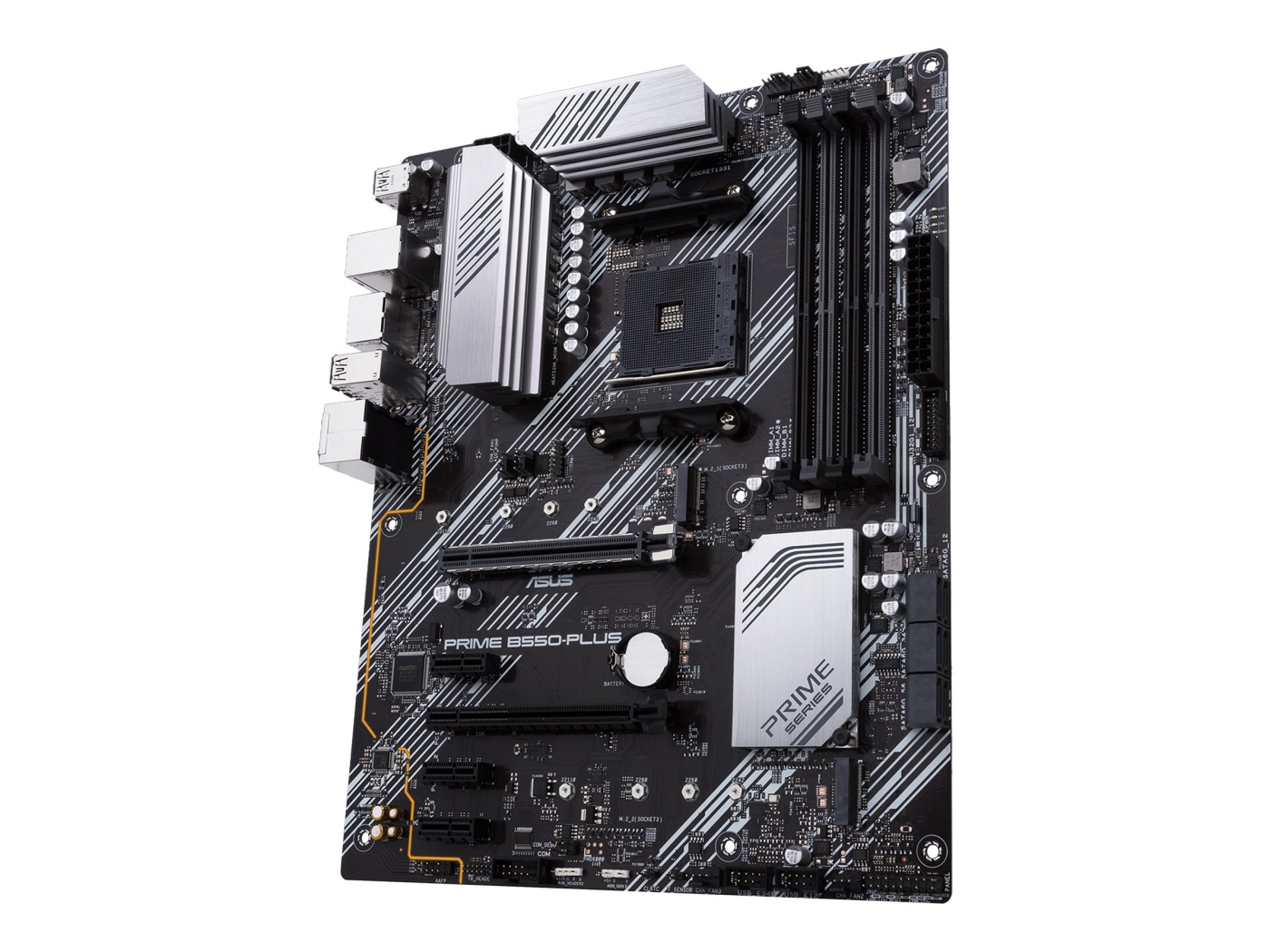

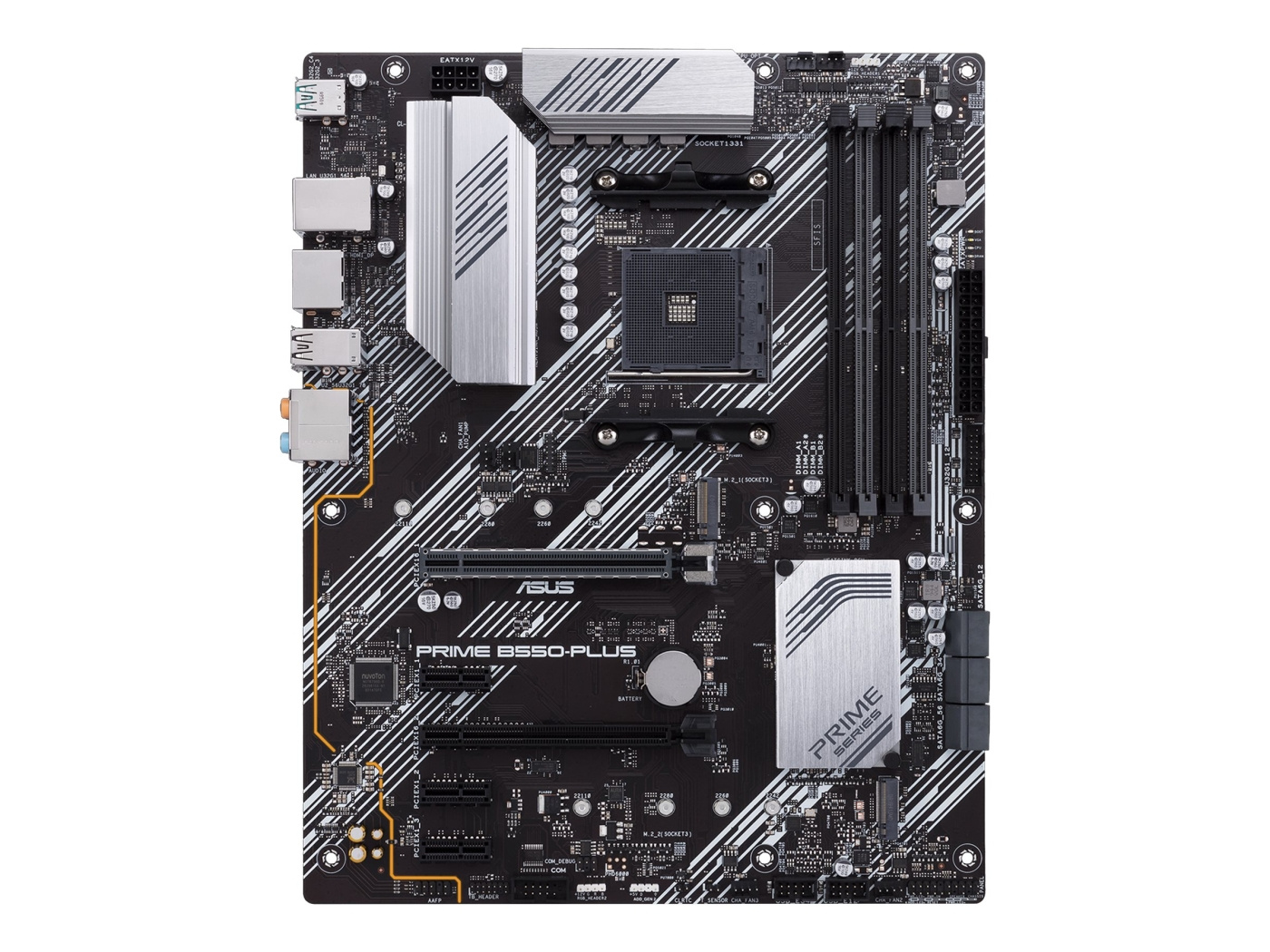

Product Type: Motherboard - ATX
Sleep/Wake: Wake on LAN (WOL), wake on PME
4718017782340EAN:
