DeLOCK Keystone Module RJ45 jack > LSA Cat.6A STP

Tuotenro: C70738

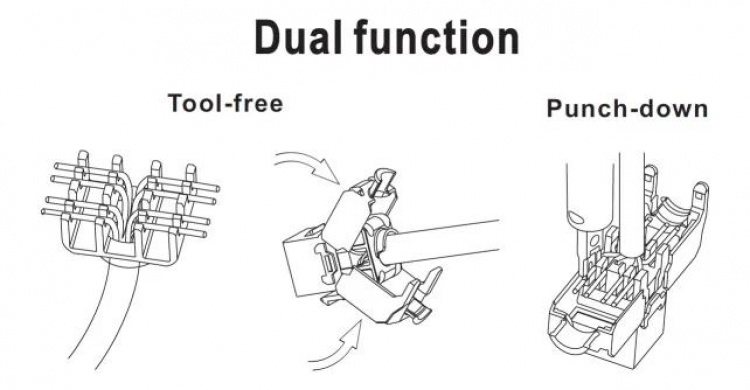

  • Connectors: external: 1 x RJ45 jack (8P/8C) > internal: LSA (toolfree)
  • Cat.6A specification
  • Shielded (STP)
  • Compliant with Cat.6A requirements of ISO/IEC 11801 Edition 2.2, EN 50173-1:2011 and EN 60603-7-51, and ANSI/TIA 568-C.2
  • Material: zinc die cast
  • TIA-568A/B pinout
€11.99

Lisää ostoskoriin
Toimitusaika:  3-7 arkipäivää
  • Qliro Checkout
  • Nopeat toimitukset
Tuotetiedot
Kaapelin pituus:0.03m
Kaapelin tyyppi:Verkko
Kaapelistandardi:Cat 6a
Kokonaispaino:0.024 kg
Liitin 1:RJ45-shielded-female
Liitin 2:Open end network
Väri:Hopea

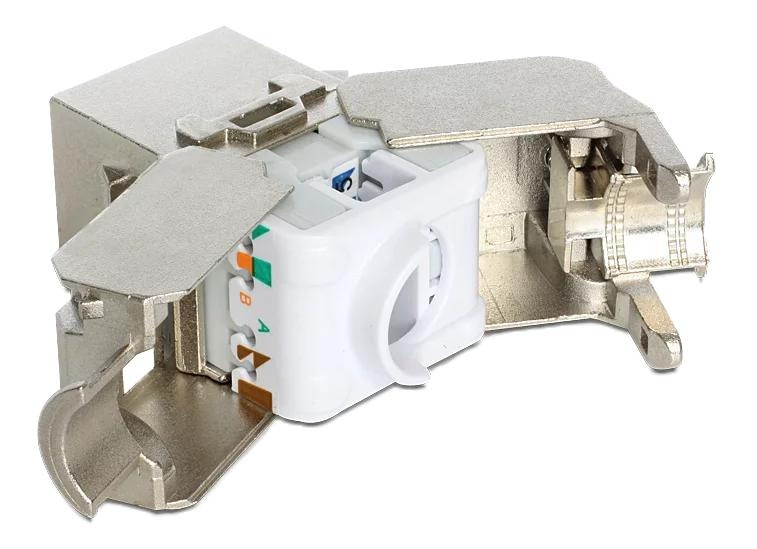

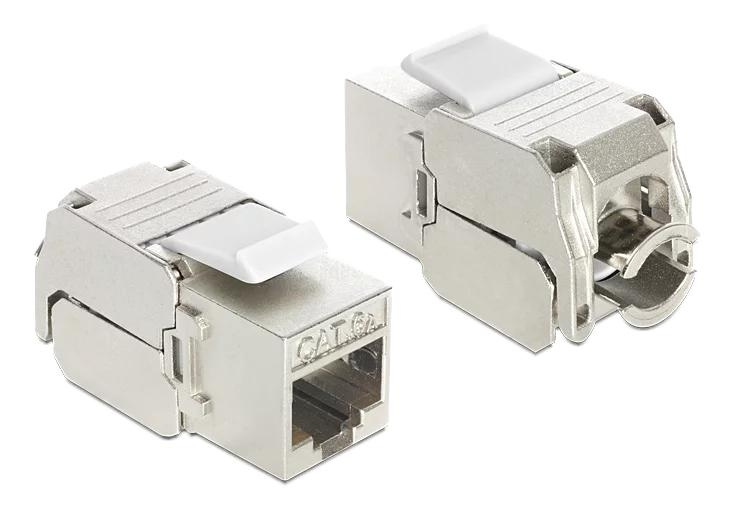

This module by Delock can be used to connect twisted pair cable to an RJ45 jack. With its standardised dimensions it can be used for easy snap-in mounting in e.g. a Keystone patch panel, face plate or surface-mount box.

  • Connectors: external: 1 x RJ45 jack (8P/8C) > internal: LSA (toolfree)
  • Cat.6A specification
  • Shielded (STP)
  • Compliant with Cat.6A requirements of ISO/IEC 11801 Edition 2.2, EN 50173-1:2011 and EN 60603-7-51, and ANSI/TIA 568-C.2
  • Material: zinc die cast
  • TIA-568A/B pinout
  • For solid or stranded wire up to 0.573 mm (23 - 26 AWG)
  • For cable diameter from 6.0 - 8.5 mm
  • For Keystone ports with 19.2 x 14.9 mm
  • Dimensions (LxWxH): ca. 37.8 x 16.0 x 22.5 mm
4043619862054EAN:
